StemSpan™白血病细胞培养试剂盒

用于慢性和急性髓性白血病细胞的培养、扩增和药物筛选

率先评论此产品

产品号 #（选择产品）

产品号 #09720_C

用于慢性和急性髓性白血病细胞的培养、扩增和药物筛选

产品优势

针对人髓系白血病细胞培养、扩增和药物筛选进行了优化。
每个接种的CD34+ CML细胞可扩增获得~65个CD34+细胞；
每个接种的CD34+ AML细胞可扩增获得~30个CD34+细胞。

跳到结尾的图片库

跳转到图像库的开头

要查看实验方案所需的所有配套产品，请参阅《实验方案与技术文档》。

StemSpan™ CD34+ Expansion Supplement (10X)
Serum-free culture supplement for expansion of human CD34+ hematopoietic cells
StemSpan™ SFEM II
Serum-free medium for culture and expansion of hematopoietic cells
Labeling Antibodies
Compatible antibodies for purity assessment of isolated cells

总览

实验数据

产品说明书及文档

应用领域

总览

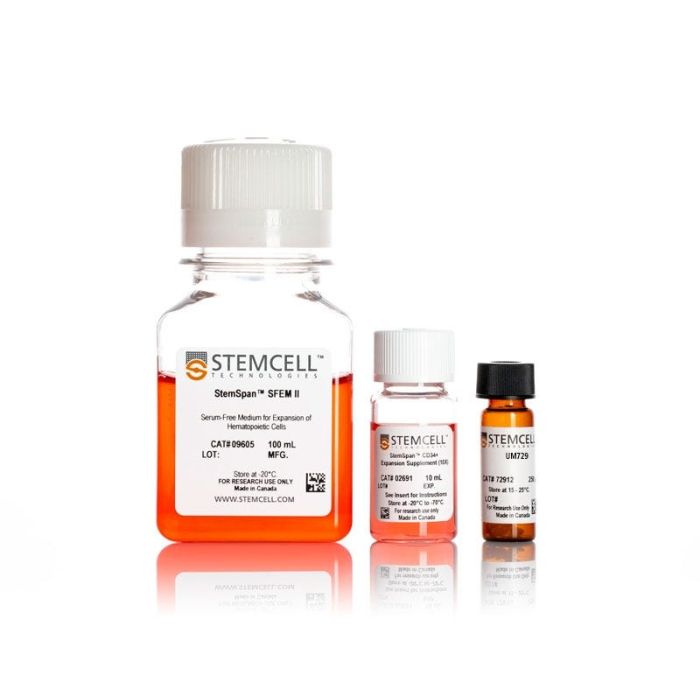

StemSpan™白血病细胞培养试剂盒适用于恶性细胞的体外培养和扩增，并已在慢性髓性白血病（CML）和急性髓性白血病（AML）样本中进行了测试。该优化方案允许您扩增、培养恶性细胞并将其用于药物筛选。StemSpan™白血病细胞培养试剂盒包括无血清培养基SFEM II（产品号 #09605），StemSpan™CD34+扩增添加物（10X；产品号 #02691）和小分子UM729（产品号 #72332）。

亚型
基础培养基，添加剂

细胞类型
癌细胞及细胞系，造血干/祖细胞，白血病/淋巴瘤细胞

种属
人

应用
细胞培养，扩增，细胞毒性检测

品牌
StemSpan

研究领域
癌症

制剂类别
无血清

查看更多显示更少

实验数据

The experiments in this Technical Bulletin were performed using cryopreserved cells, however similar results are expected when using fresh samples. Additionally in place of UM729, the small molecule UM171 was used to generate data in Figures 4 - 7. UM171 is no longer licensed for sale by STEMCELL Technologies, however similar results are expected when using UM729 prepared to a final concentration of 1 μM (data not shown). Further titration may be necessary to optimize cell fold expansion in specific conditions.
For more information including data comparing UM171 and UM729, see Fares et al. 2014.

Figure 1. Isolation of Leukemic CD34+ Cells

Cryopreserved CML or AML PBMCs and BMMCs were thawed and prepared for isolation. CD34+ cells were isolated using EasySep™ Human Cord Blood CD34 Positive Selection Kit II. The percentage of CD34+ cells before (A, C) and after (B, D) CD34+ cell isolation was measured by flow cytometry. Dead cells were excluded by light scatter profile and viability staining. In this example the purity of CD34+ cells increased from 3% to 82% (CML) and from 16% to 93% (AML).

Figure 2. Expansion of CD34+ CML Cells

CD34+ CML cells were cultured in StemSpan™ SFEM II containing CD34+ Expansion Supplement (Exp) without or with UM171. After 7 and 14 days, the cultured cells were stained with fluorescently labeled antibodies against CD45, CD34, CD90, CD45RA, and with ALDEFLUOR™ (Catalog #01700) to measure ALDH activity, and analyzed by flow cytometry. Sequential gates were used to determine the percentages of viable CD45+, CD45+CD34+ and CD45+CD34+CD90+CD45RA- cells(based on “Fluorescence Minus One” (FMO) controls), and ALDHbr cells (based on DEAB control). (A) Representative flow cytometry profiles at day 7 are shown. The (B,D) frequency and (C,E) cell numbers of these subsets per initial CD34+ cell on (B,C) day 7 and (D,E) day 14 are shown. StemSpan™ SFEM II supplemented with CD34+ Expansion Supplement supports the expansion of CML cells in culture. The addition of UM171 enhances expansion of all subsets shown (~10-fold expansion of CD34+ progenitor cells at day 7 and ~20-fold at day 14 compared to cultures without UM171). Data shown are mean ± SEM (n = 6). P-values were calculated using a two-tailed paired Student’s t-test (*P < 0.05; **P < 0.01; ***P < 0.0001). All six CML samples tested were able to expand in culture.

Figure 3. Expansion of CD34+ AML Cells

CD34+ AML cells were cultured in StemSpan™ SFEM II containing CD34+ Expansion Supplement (Exp) alone, or with UM171. After 7 and 14 days, the cultured cells were stained with fluorescently labeled antibodies and with ALDEFLUOR™ Reagent as described in Figure 2. (A) Representative flow cytometry profiles at day 7 are shown. The (B, D) frequency and (C, E) cell numbers of these subsets per initial CD34+ cell on (B, C) day 7 and (D, E) day 14 are shown. SFEM II supplemented with CD34+ Expansion Supplement supports the expansion of AML cells in culture. The addition of UM171 further enhances expansion of all subsets shown (~3-fold expansion of all subsets at day 7 and ~7-fold at day 14 compared to cultures without UM171). Data shown are mean ± SEM (n = 6). P-values were calculated using a two-tailed paired Student’s t-test (*P < 0.05; **P < 0.01). Six out of ten AML samples tested were able to expand in culture.

Figure 4. Colony-Forming Potential of CD34+ CML Cells is Maintained During Culture

CML cells were assayed in colony assays using MethoCult™ H4435 Enriched medium directly after CD34+ cell isolation (day 0) or after 7 or 14 days of expansion without or with UM171 (as described in Figure 2). After 14 days of culture in StemSpan™ SFEM II with CD34+ expansion supplement (Exp) with or without UM171, colonies were (A) imaged with STEMvision™ and counted manually from digital images. (B) CFU output expressed as the total number of colonies per original input CD34+ cell. Numbers above each of the individual bars indicate the proportion of BCR-ABL positive colonies, measured by qRT-PCR on individual plucked colonies across 6 different samples (8-12 colonies were plucked for each sample per condition). SFEM II supplemented with CD34+ Expansion Supplement (Exp) supports the expansion of colony-forming progenitor cells in culture. UM171 further promotes colony forming progenitor cell output (~3.5-fold expansion at day 7 and ~8-fold at day 14). Single-colony qRT-PCR analysis revealed that colonies generated from samples on day 0, and colonies generated from cells expanded for 7 and 14 days, were predominantly BCR-ABL+ but also that normal BCR-ABL- progenitor cells were present at low frequencies. Data shown are mean ± SEM (n = 6). P-values were calculated using a two-tailed paired Student’s t-test (*P < 0.05).

Figure 5. Colony-Forming Potential of CD34+ AML Cells is Maintained During Culture

AML cells, after CD34+ cell isolation (day 0) or after 7 or 14 days of expansion without or with UM171 (as described in Figure 3), were plated in colony assays with MethoCult™ H4435 Enriched medium. After 14 days of incubation, colonies were (A) imaged with STEMvision™ and counted manually from digital images. (B) CFU output expressed as the total number of colonies per original input CD34+ cell. SFEM II supplemented with CD34+ Expansion Supplement (Exp) supports the expansion of colony-forming progenitor cells in culture. Addition of UM171 further promotes colony-forming progenitor cell output (~3-fold expansion at day 7 and ~4-fold at day 14). Data shown are mean ± SEM (n = 6). P-values were calculated using a two-tailed paired Student’s t-test (*P < 0.05).
