StemSpan™ NK细胞生成试剂盒

将人CD34+造血祖细胞扩增、分化为NK细胞

率先评论此产品

产品号 #（选择产品）

产品号 #09960_C

将人CD34+造血祖细胞扩增、分化为NK细胞

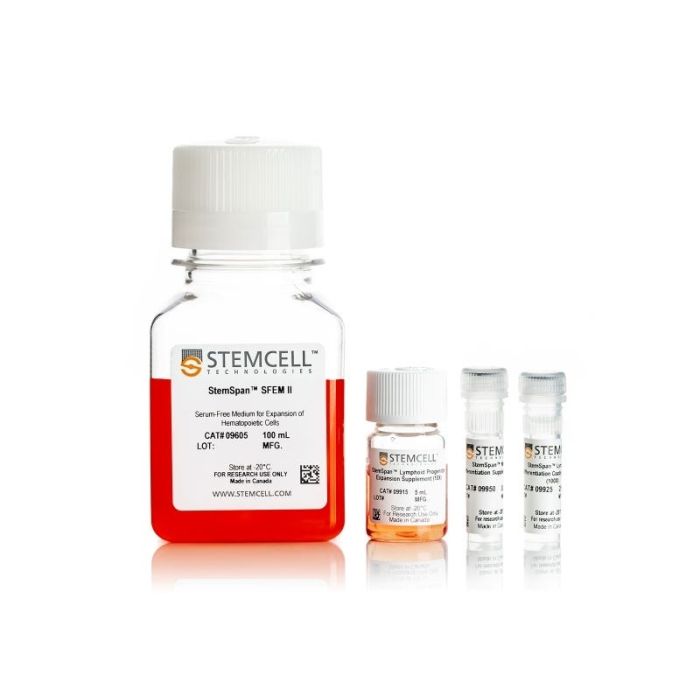

产品组分包括

StemSpan™ SFEM II培养基，100 mL
StemSpan™淋系祖细胞扩增添加物（10X）, 5 mL
StemSpan™淋系祖细胞分化包板材料（100X），250 µL
StemSpan™ NK细胞分化添加物（100X），500 µL

跳到结尾的图片库

跳转到图像库的开头

总览

使用StemSpan™ NK细胞生成试剂盒，无需血清或基质细胞，即可将脐带血（CB）和骨髓（BM）中分离的CD34+细胞分化为自然杀伤（NK）细胞。该试剂盒可促进从起始的人脐带血CD34+细胞中扩增出数千个CD56+ NK细胞。

StemSpan™淋系祖细胞扩增添加物（10X）的配方含有重组人细胞因子组合和其他添加剂，当与StemSpan™ SFEM II培养基以及用StemSpan™淋系祖细胞分化包板材料（100X）包被的培养板搭配使用时，可选择性促进从人脐带血和骨髓样本中分离的CD34+细胞扩增并分化为淋系祖细胞。随后，StemSpan™ NK细胞分化添加物（100X）可将淋系祖细胞进一步分化为NK细胞。试剂盒所有组分也可单独购买，以方便您的使用。

实验数据

StemSpan™ NK procedure from seeding CB-derived CD34+ cells to harvesting of differentiated NK cells

Figure 1. StemSpan™ NK Cell Generation Protocol

CB-derived CD34+ cells are seeded on day 0. Medium should be topped up after 3 - 4 days of culture followed by two half-medium changes every 3 - 4 days. On day 14, cells at the lymphoid progenitor stage are harvested and reseeded for further differentiation into NK cells. Top-up and half-medium changes should be performed every 3 - 4 days after harvest and reseed, as indicated in the figure. Note: UM729 should only be added to the NK Cell Differentiation Medium, but not the Lymphoid Progenitor Expansion Medium.

Frequency and yield of CD56- and NKp46-expressing cells produced after culture of CD34+ HSPCs with the StemSpan™ NK Cell Generation Kit

Figure 2. Frequency and Yield of CD56+ NK Cells After 28 Days of Culture

CB-derived CD34+ cells (freshly isolated or frozen) were cultured with the StemSpan™ NK Cell Generation Kit for 28 days as described. Cells were harvested and analyzed for (A,B) CD56 and (A) NKp46 expression by flow cytometry. Dead cells were excluded by light scatter profile and viability staining. (B) The average frequency of viable CD56+ NK cells on day 28 was 77%, with ~9,000 CD56+ cells produced per input CB-derived CD34+ cell. Shown are means with 95% confidence intervals (n = 45: 23 freshly isolated and 22 frozen CD34+ cell samples). BM-derived CD34+ cells were also differentiated into NK cells using the StemSpan™ NK Cell Generation Kit. The yield of NK cells from BM HSPCs is typically lower than with CB, averaging ~75 per input CD34+ cell (n = 3, data not shown).

Flow cytometry plots showing cell surface marker expression on CD56+ NK cells after culture with the StemSpan™ NK Cell Generation Kit

Figure 3. Cell Surface Marker Expression on CD56+ NK Cells After 28 Days of Culture

CB-derived CD34+ cells were cultured with the StemSpan™ NK Cell Generation Kit for 28 days. The differentiated cells were harvested and analysed by flow cytometry for the expression of CD56, NKp44, NKp30, NKG2D, CD94, CD16, and KIR. Staining for KIR molecules was performed using a combination of two clones for the antibody, 180704 and HP-MA4, as each recognizes a distinct subset of KIR molecules.

Killing activity of NK cells toward K562 target cells compared to PB NK cells following culture with the StemSpan™ NK Cell Generation Kit

Figure 4. Cultured NK Cells Exhibit Cytotoxicity Toward K562 Cell Line

NK cells were generated from CB-derived CD34+ cells over 28 days using the protocol in Figure 1. On day 28, cells were harvested, stained for CD56, and viable CD56+ cells were counted. K562 cells were incubated with 8 μM calcein AM at 37°C for 1 hour and then washed twice. CD56+ NK cells were then combined with 10,000 of these calcein AM-labeled K562 target cells at an Effector:Target ratio of 5:1 in U-bottom 96-well plates and co-cultured at 37°C for 4 hours. Adult peripheral blood (PB) NK cells and monocytes isolated using EasySep™ were used as positive and negative controls, respectively. PB NK cells were cultured overnight with the NK Cell Differentiation Supplement and SFEM II, while PB monocytes were cultured overnight in SFEM II only. To detect spontaneous release, control wells containing only calcein AM-labeled K562 target cells were set up. The labeled K562 cells were treated with 1% Triton™ X-100 to measure maximum release. After incubation, plates were centrifuged at 500 x g for 5 minutes and 100 μL of supernatant was transferred to black plates and analyzed using a SpectraMax® microplate reader (excitation 485 nm/emission 530 nm). Results are expressed as % specific lysis: [(test release - spontaneous release) x 100] / (maximum release - spontaneous release). CB CD34+-derived NK cells show similar killing activity toward K562 target cells compared to PB NK cells. Shown are means ± SD (CB CD34+-derived NK cells: n = 18, PB NK cells and monocytes: n = 7).
